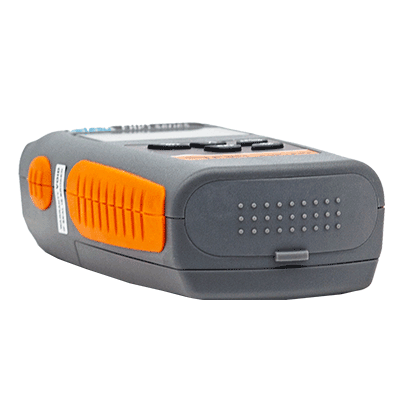

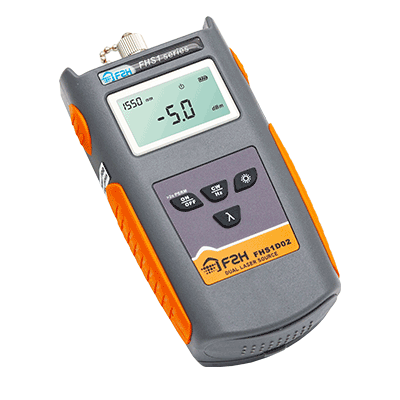

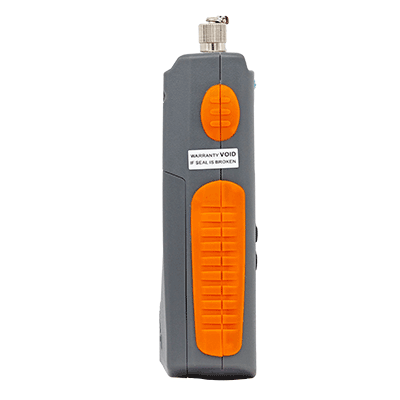

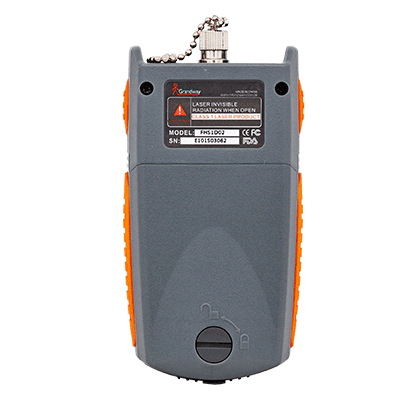

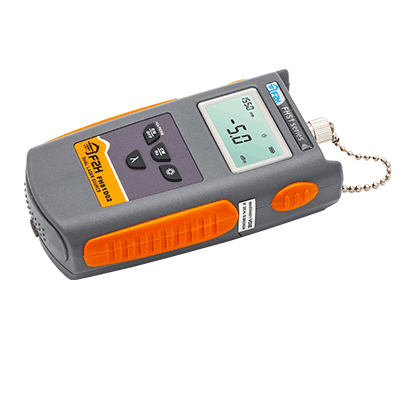

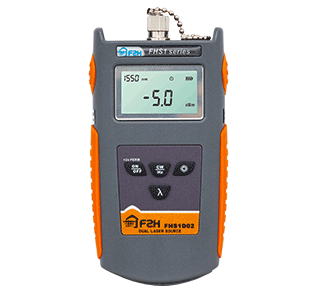

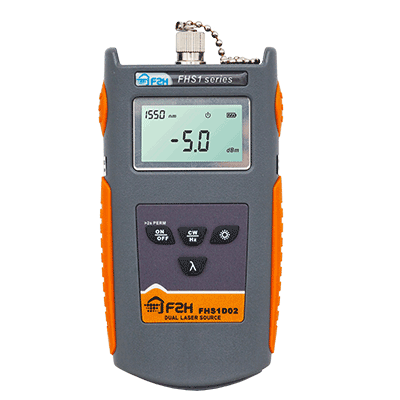

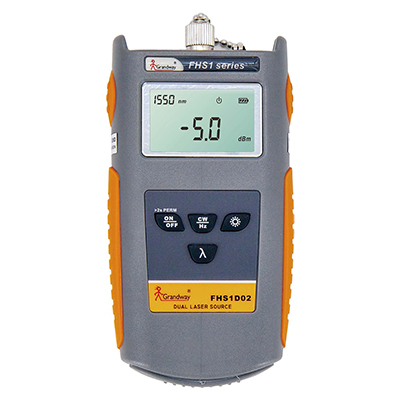

FHS1 Series Laser Source
The FHS1 Series laser source offers excellent stability and portability for accurate fiber optic testing. The output power is stable -5dBm and support CW/270/1k/2kHz modulated output mode.
LD
Laser type

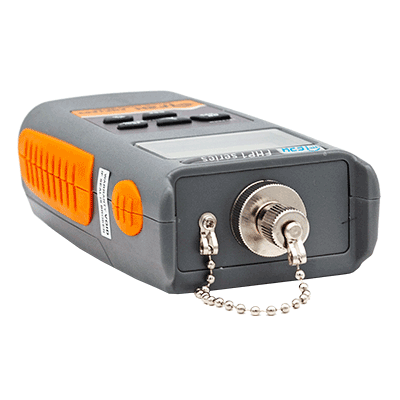

FC/PC
Optical port
-5dBm
Output power
270/1k/2kHz
Output frequency
4*AAA dry
Battery
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Both single mode and multi mode laser are available
Single output interface
Rugged and portable
With backlight and auto power off function
Support CW, 270Hz, 1kHz and 2kHz mode output

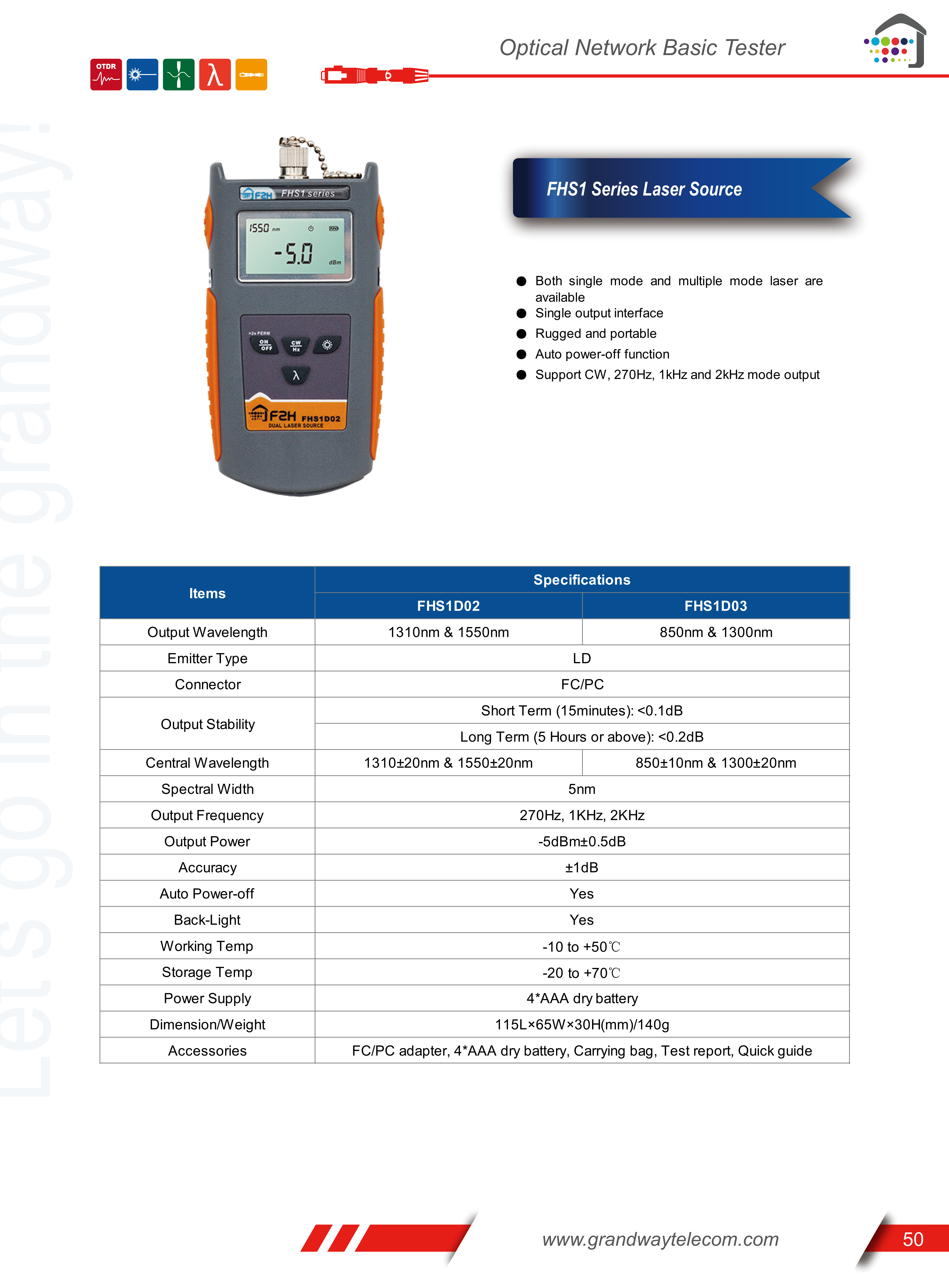

| ltems | Specifications |
|---|---|
| Working Wavelength | FHS1D02: 1310nm&1550nm |
| FHS1D03: 850nm&1300nm | |
| Connector | FC/PC |
| Output Stability | Single mode: Short Term (15minutes): <0.05dB |
| Multi mode: Short Term (15minutes): <0.1dB | |
| Single mode: Long Term (8hours): <0.1dB | |
| Multi mode: Long Term (8hours): <0.2dB | |
| Output Power | -5dBm(typical) |
| Output Frequency | 270Hz, 1kHz, 2kHz |
| Auto Power-off | 10 minutes |
| Screen Backlight | Support |
| Power Supply | 4*AAA dry battery |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~70℃ |
| Dimension | 115x65x30mm |
| Weight | 140g |
