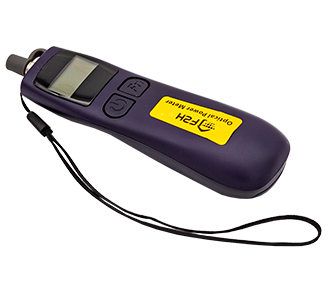

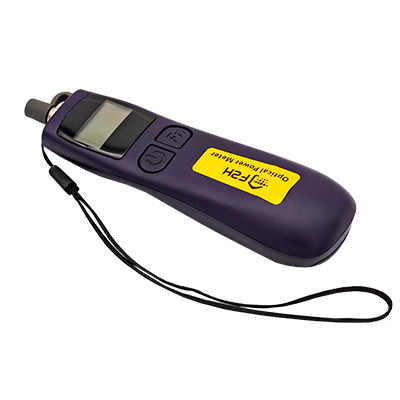

FHP12 Series Mini Power Meter
FHP12 Series Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelength. Used together with optical laser source, it could accurately measure the loss of fiber, cable and other passive optical devices.
2.5mm
Optical port
800~1700nm
Working wavelength
0.01dB
Resolution
±0.35dB
Accuracy
Support
Backlight funciton

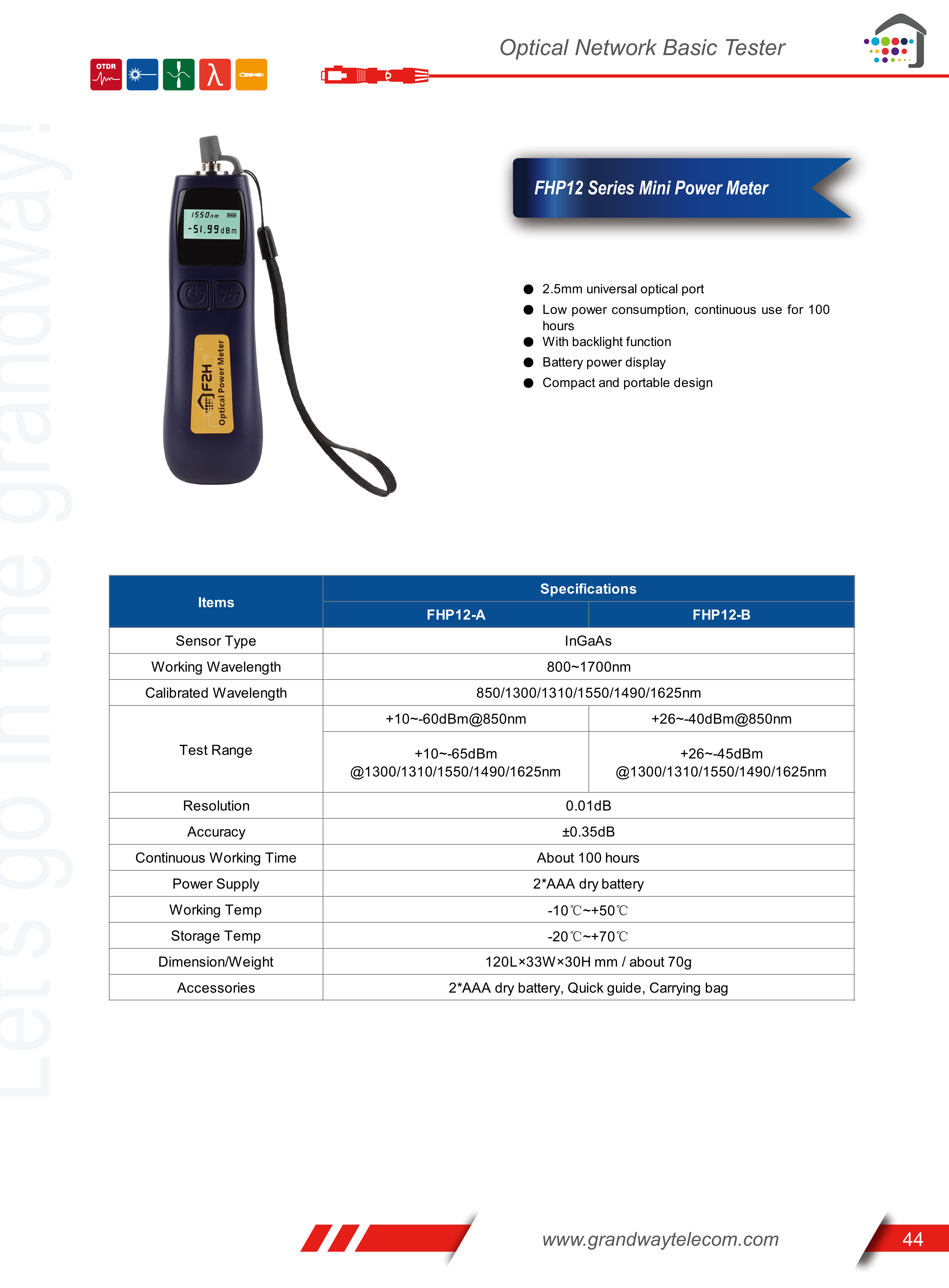

DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
2.5mm universal optical port
Low power consumption
With backlight function
Battery power display
Compact and portable design

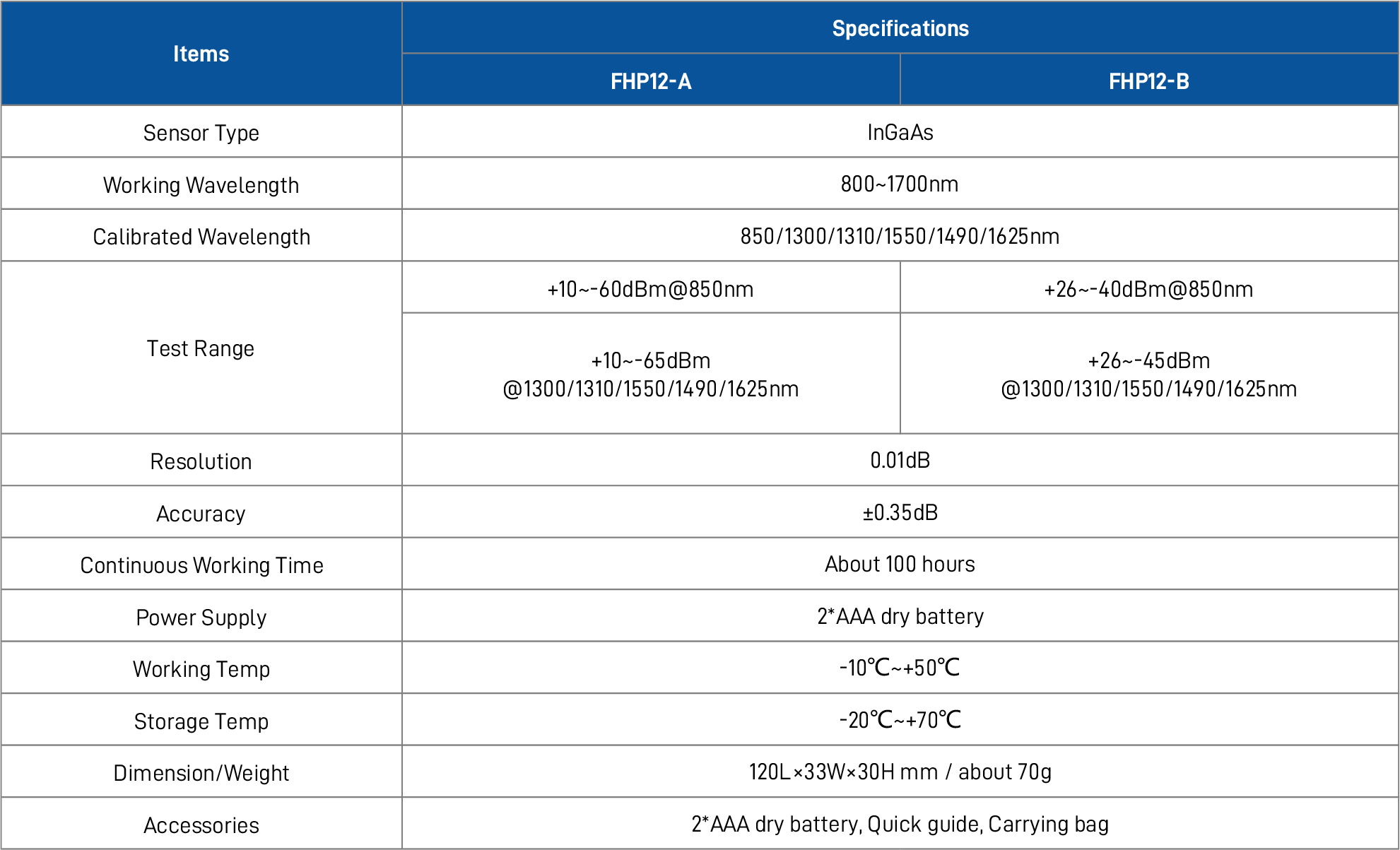

| ltems | Specifications |
|---|---|
| Sensor Type | InGaAs |
| Working Wavelength | 800nm~1700nm |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm |
| Test Range | FHP12-A: -65~+10dBm |
| FHP12-B: -45~+26dBm | |
| Resolution | 0.01dB |
| Accuracy | ±0.35dB |
| Power Supply | 2*AAA dry battery |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~70℃ |
| Dimension | 120x33x30mm |
| Weight | 70g |
