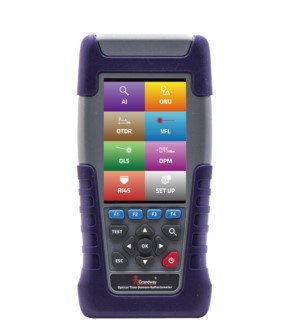

FHO1500 Optical Explorer

GRANDWAY

Functions

FHO1500 is a new generation instrument specially designed for FTTH test. According to different installation and maintenance applications, it has a variety of test modes to meet test needs. The innovative intelligent diagnosis module (AI) has the function of advanced optical fiber event map, weak light lines troubleshooting and release the unknown splitter port.

FOH-100 G/EPON Tester

DATASHEET

FOH-100 G/EPON Tester

SOFTWARE

FOH-100 G/EPON Tester

MANUAL

FOH-100 G/EPON Tester

CERTIFICATE

Features


Suitable for drop cable measurement from splitter to ONU to solve the problem of weak light ONU

Accurately check the splitter occupied port status to help release redundant ports (No ONU connected)

Accurate optical fiber testing capability over 60km

Support live fiber test with optical filter

Built-in 20dB OTDR,10mw VFL, stable laser source, 10G PON selective OPM, normal broadband OPM, RJ45 cable test

With bluetooth function and mobile phone app

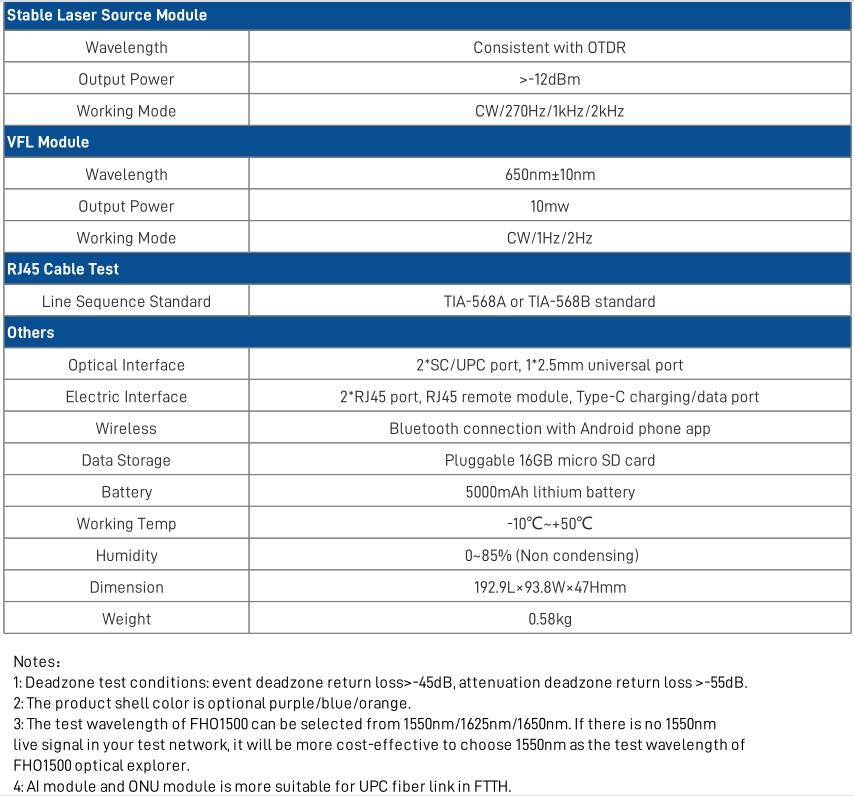

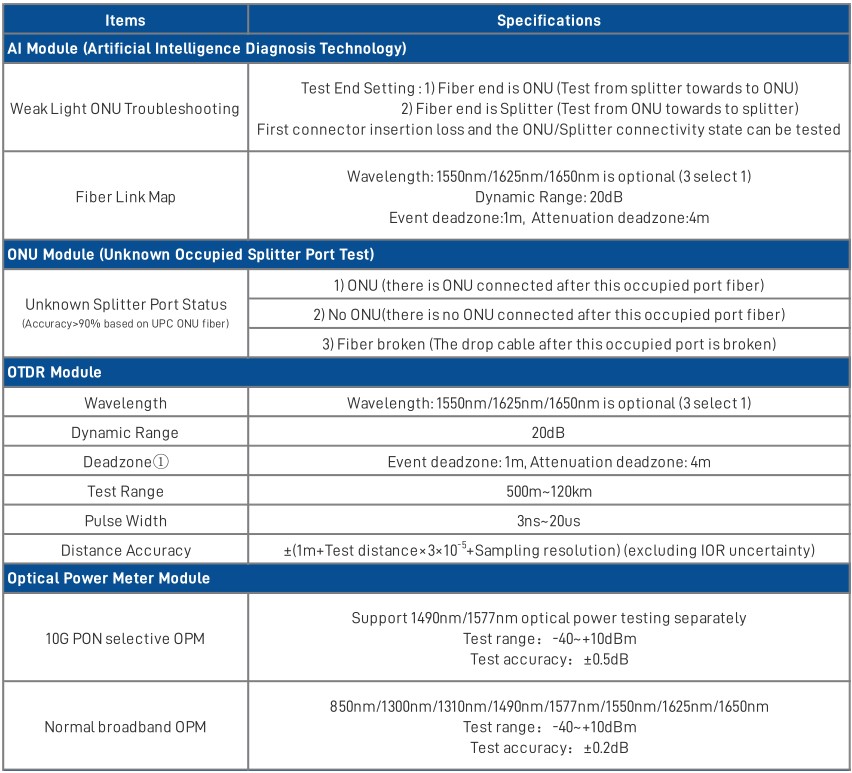

Parameter
