OFI-3 Fiber Identifier
GRANDWAY
OFI-3 optical fiber identifier is a low cost, portable instrument designed to detect optical signals without disrupting online service. During installation and maintenance of optical network, it's often necessary to isolate a specific fiber, By simply clamping the OFI-3 on a fiber. The OFI-3 will indicate if there is a signal, the direction, the intensity and the modulation frequency.
900~1650nm
Wavelength range
270/1k/2kHz
Frequency
Min -50dBm
Sensitivity
5 grades
Intensity
2*AA dry
Battery
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Identification of 270/1k/2kHz modulation frequency
Direction and intensity indication of optical signal
Natural light intensity calibration function
Convenient and easy to use
LED indicator make test simple and clear

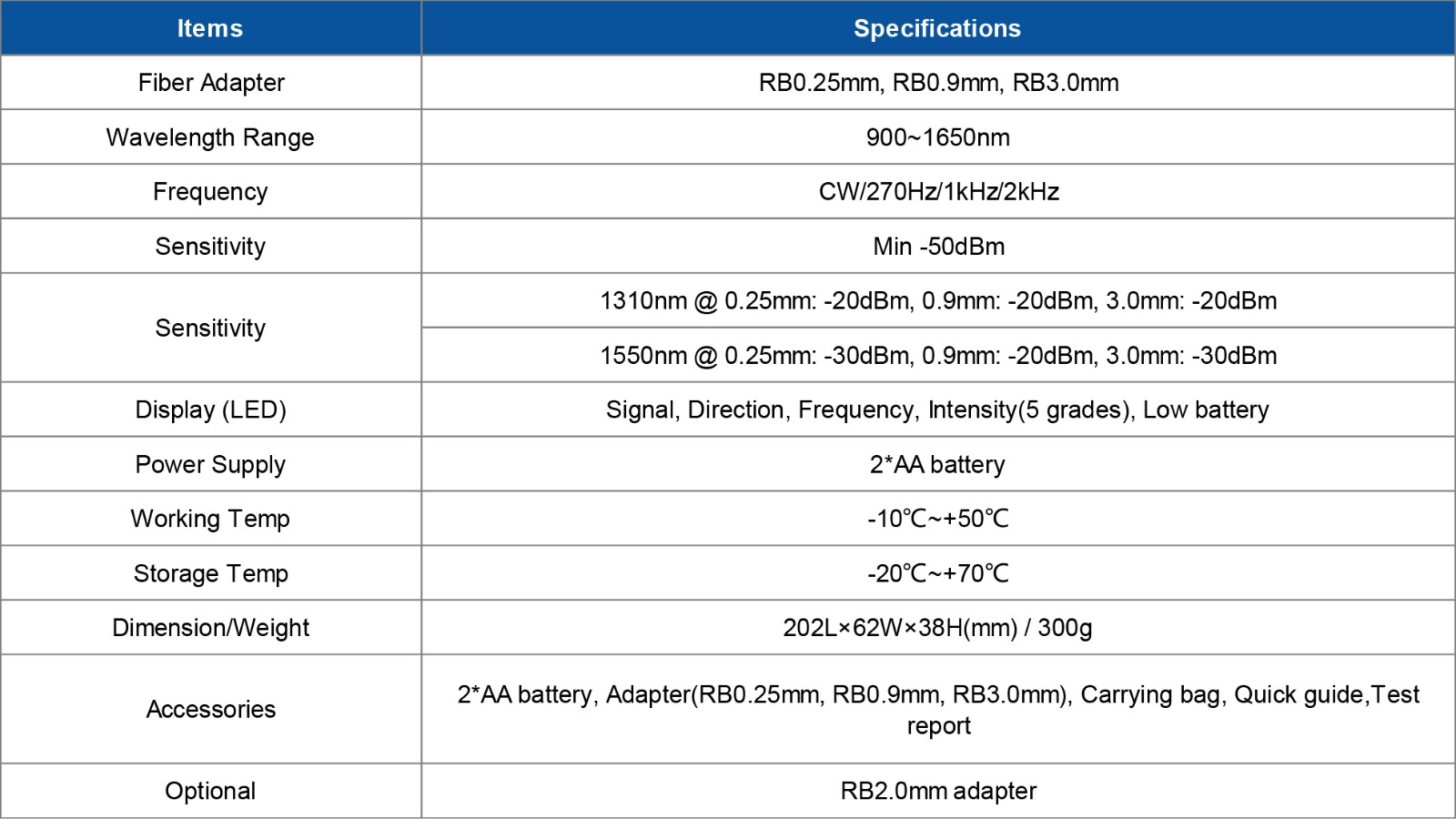

| ltems | Specifications |
|---|---|
| Fiber Adapter | RB0.25mm, RB0.9mm, RB3.0mm |
| Wavelength Range | 900~1650nm |
| Frequency | CW/270Hz/1kHz/2kHz |
| Sensitivity | Min -50dBm |
| Display (LED) | Signal, Direction, Frequency, Intensity(5 grades), Low battery |
| Power Supply | 2*AA battery |
| Working Temp | -10 ~+50 ℃ |
| Storage Temp | -20 ~+70 ℃ |
| Dimension | 202L×62W×38H(mm) |
| Weight | 300g |
