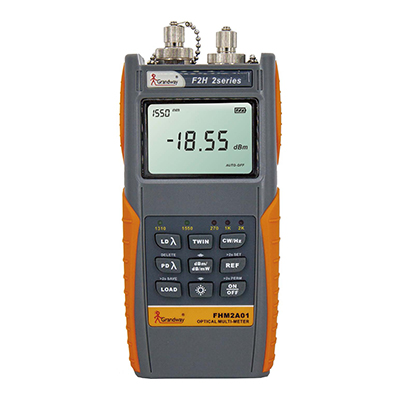

FHM2 Series Optical Multimeter
GRANDWAY
FHM2 Series optical multimeter integrates a stable laser source and a precise optical power meter. The laser source part launches 1310nm/1550nm or 1310nm/1490nm/1550nm (according to different models).The optical powet meter part support measuring -70~+10dBm or -50~+26dBm (according to different models).With the PC software, user can generate a report easily.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Integrated laser source and optical power meter
Dual or triple wavelength output
Suitable for fiber or device insertion loss test
2* Ni-MH AA battery and Type-C charging port
With LCD backlight function and auto power off
Up to 999 test results storage
| ltems | Specifications |
|---|---|
| Laser Source Part(LD) | |
| Output Wavelength | FHM2A01: 1310nm/1550nm |
| FHM2A02: 1310nm/1490nm/1550nm | |
| FHM2B01: 1310nm/1550nm | |
| FHM2B02: 1310nm/1490nm/1550nm | |
| Output Power(Typical) | FHM2A01/FHM2B01: -5dBm |
| FHM2A02/FHM2B02: 0dBm | |
| Frequency Output | 270/1k/2kHz |
| Power Meter Part(PD) | |
| Test Range | FHM2A01/FHM2A02: -70~+10dBm |
| FHM2B01/FHM2B02: -50~+26dBm | |
| Resolution | 0.01dB |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm |
| Accuracy | ±0.2dB |
| Frequency Detection | 270Hz/1kHz/2kHz |
| Wavelength Detection | Support |
| Memory Capacity | 999 groups |
| Others | |
| USB Port | USB Type-C |
| Optical Port | FC/UPC or SC/UPC |
| Power Supply | 2* Ni-MH AA battery; Input: AC100~240V, 50/60Hz Output: DC5V/1A |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~70℃ |
| Dimension | 160L×76W×45H(mm) |
| Weight | 310g |
