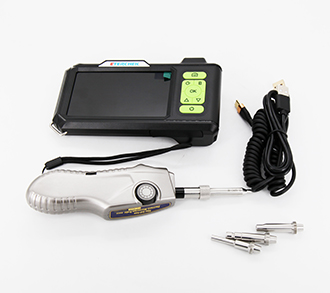

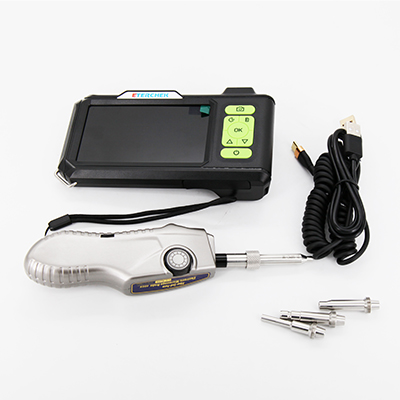

FIM-5 Fiber Microscope

FIM-5 Fiber Microscope
FIM-5 Fiber Microscope

Functions

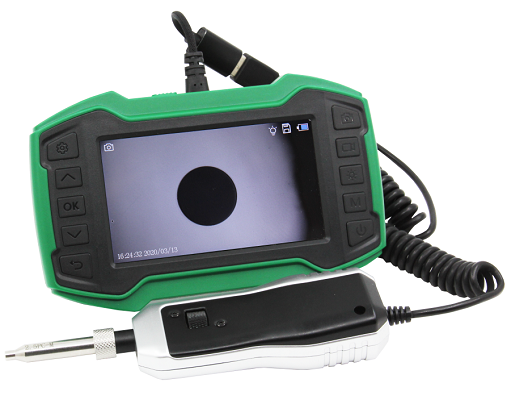

FIM-5 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers  400 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.

400X

Magnification

<1um

Resolution

2~6s

Focus speed





FIM-5 Fiber Microscope

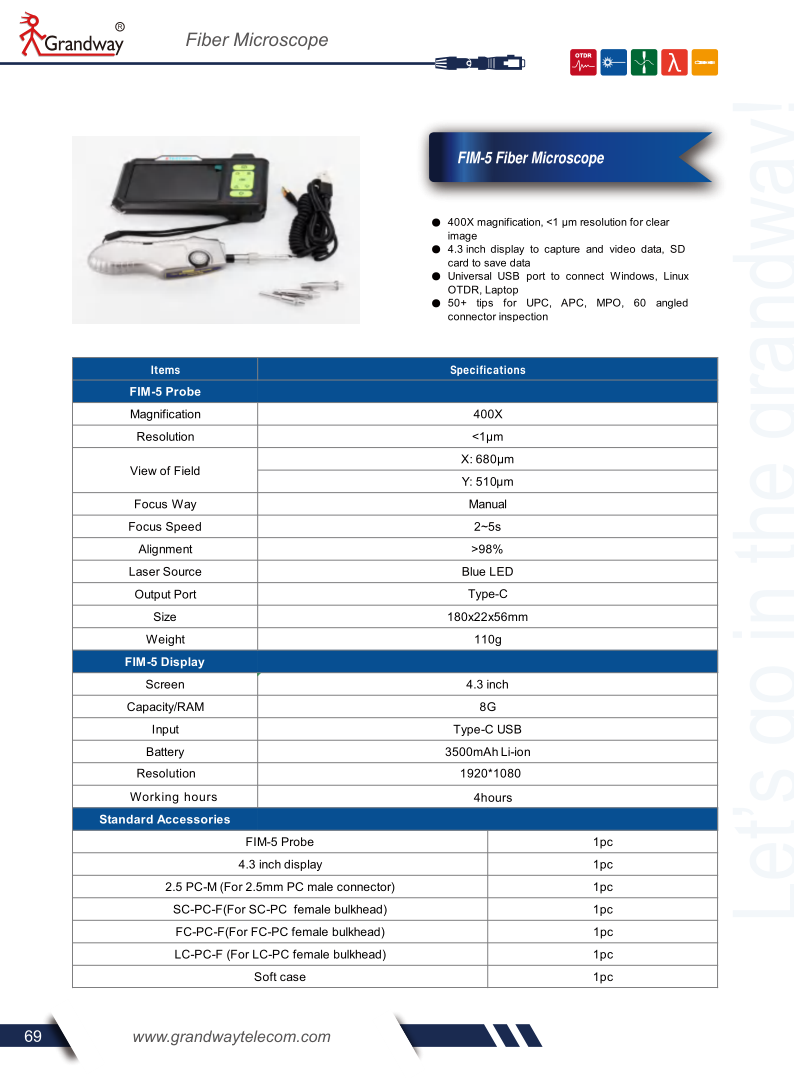

DATASHEET

FIM-5 Fiber Microscope

SOFTWARE

FIM-5 Fiber Microscope

MANUAL

FIM-5 Fiber Microscope

CERTIFICATE

Features

FIM-5 Fiber Microscope

Unidirectional focusing, quick and accurate imaging

400X magnification, clear image

Changeable high capacity batteries

Photo, video and record tested fiber

Brightness and contrast adjustable

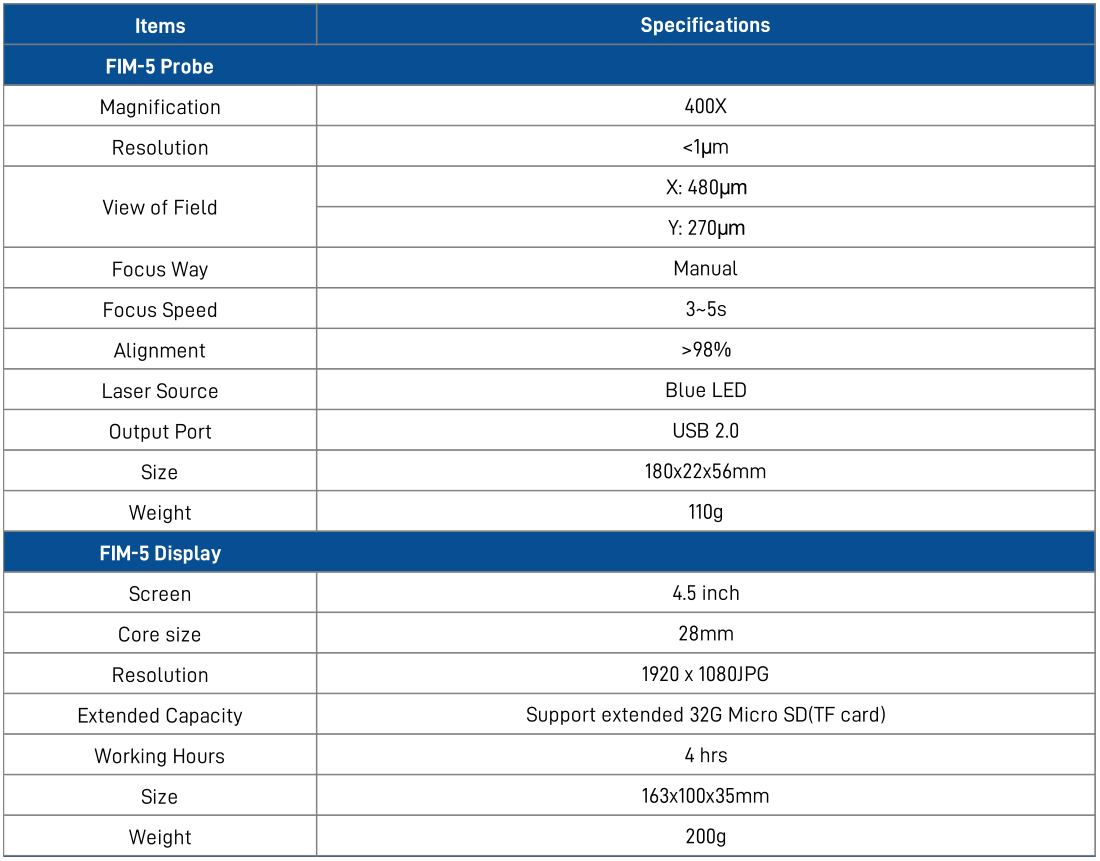

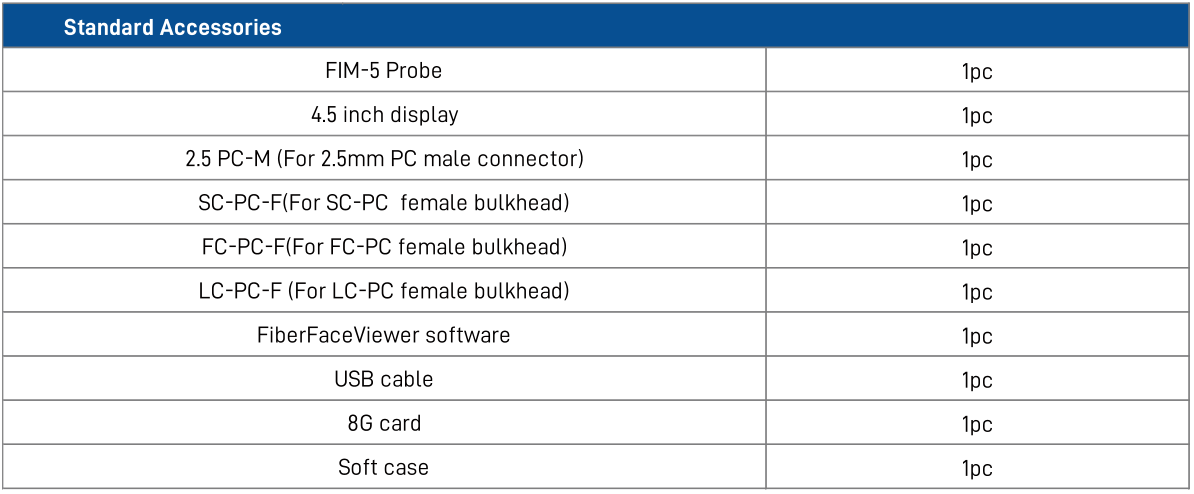

Parameter


Name*

×

Tel*

×

Email*

×

Add

×

Message
