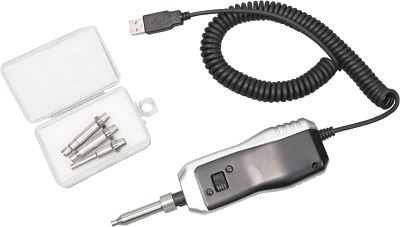

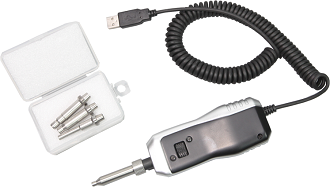

FIM-4 Fiber Microscope
New generation FIM-4 fiber microscope is the new upgraded digital video inspection probe. FIM-4 can also be directly connected to the computer, laptop, OTDR and tablet with one universal USB cable, which is a full-functional all-in-one optical fiber end face inspection microscope.
400X
Magnification
1.0um
Resolution
680×510um
Field of view
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
400X magnification,<1 µm resolution for clear image
Universal USB port to connect OTDR and Laptop
50+tips available for UPC, APC, MPO, 60 angled connector inspection
Applicable to FHO5000 PRO series OTDR
Support connect with Android phone and display(need additional OTG to Type-C cable)
| ltems | Specifications |
|---|---|
|
Magnification |
400X |
| Resolution | <1um |
| View of Field | X: 680um; Y: 510um |
| Focus way | Manual |
| Focus speed | 2~5s |
| Alignment | >98% |
| USB port | Type-C |
| Dimension | 180x22x56mm |
| Weight |
110g |
| Standard Accessories | |
|
FIM-4 Probe |
1pcs |
| 2.5 PC-M (For 2.5mm PC male connector) | 1pcs |
| SC-PC-F(For SC-PC female bulkhead) | 1pcs |
| FC-PC-F(For FC-PC female bulkhead) | 1pcs |
| LC-PC-F (For LC-PC female bulkhead) | 1pcs |
