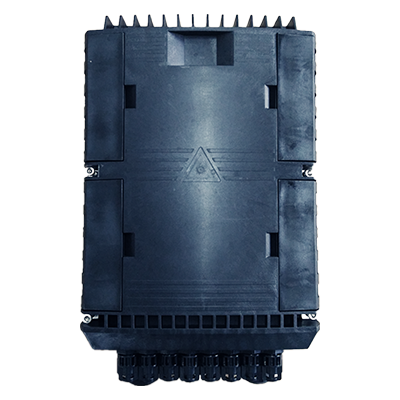

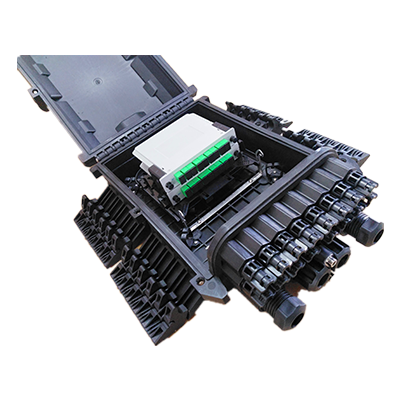

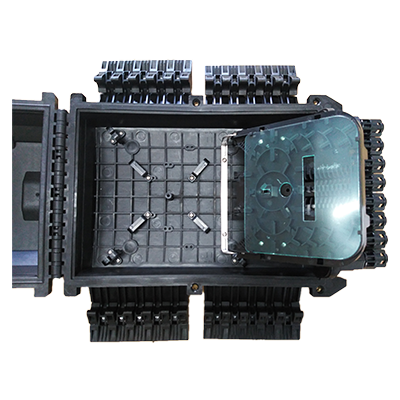

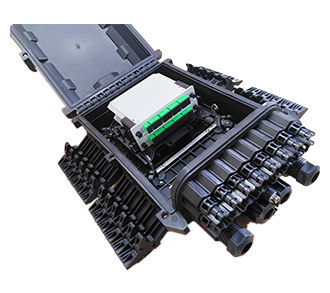

F2H-FOC-F001-16 Fiber Optical Closure

F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure
F2H-FOC-F001-16  Fiber Optical Closure

Functions

Grandway’s fiber optic closure provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.







F2H-FOC-F001-16  Fiber Optical Closure

DATASHEET

F2H-FOC-F001-16  Fiber Optical Closure

SOFTWARE

F2H-FOC-F001-16  Fiber Optical Closure

MANUAL

F2H-FOC-F001-16  Fiber Optical Closure

CERTIFICATE

Features

F2H-FOC-F001-16  Fiber Optical Closure

Water-proof design with IP65 Protection level.

Integrated with cable management system.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

1 uncut cable port and 2 round cable ports for feeder cables.

16 ports cable entrance for 2*3mm FTTH drop cable.

1*16 or 1*8 Insertion Module Splitter can be installed.

Parameters
