GW6700 Optical Cable Identifier

GW6700 Optical Cable Identifier
GW6700 Optical Cable Identifier

Functions

GW6700 optical cable identifier can accuratley identifiy the specific cable from a bunch of aerial, duct, or direct buried cables by connecting it to one fiber with FC/APC connector in the cable and knocking the cable.

Max +9dBm

Output power

80km

Max test distance

>40dB

SNR

FC/APC

Optical port

5.6 inch

Touch screen display

10km

VFL test distance

GW6700 Optical Cable Identifier

DATASHEET

GW6700 Optical Cable Identifier

SOFTWARE

GW6700 Optical Cable Identifier

MANUAL

GW6700 Optical Cable Identifier

CERTIFICATE

Features

GW6700 Optical Cable Identifier

Easy to find the target cable through sound and image

High dynamic range, up to 80km test range

High SNR>40dB

With VFL function

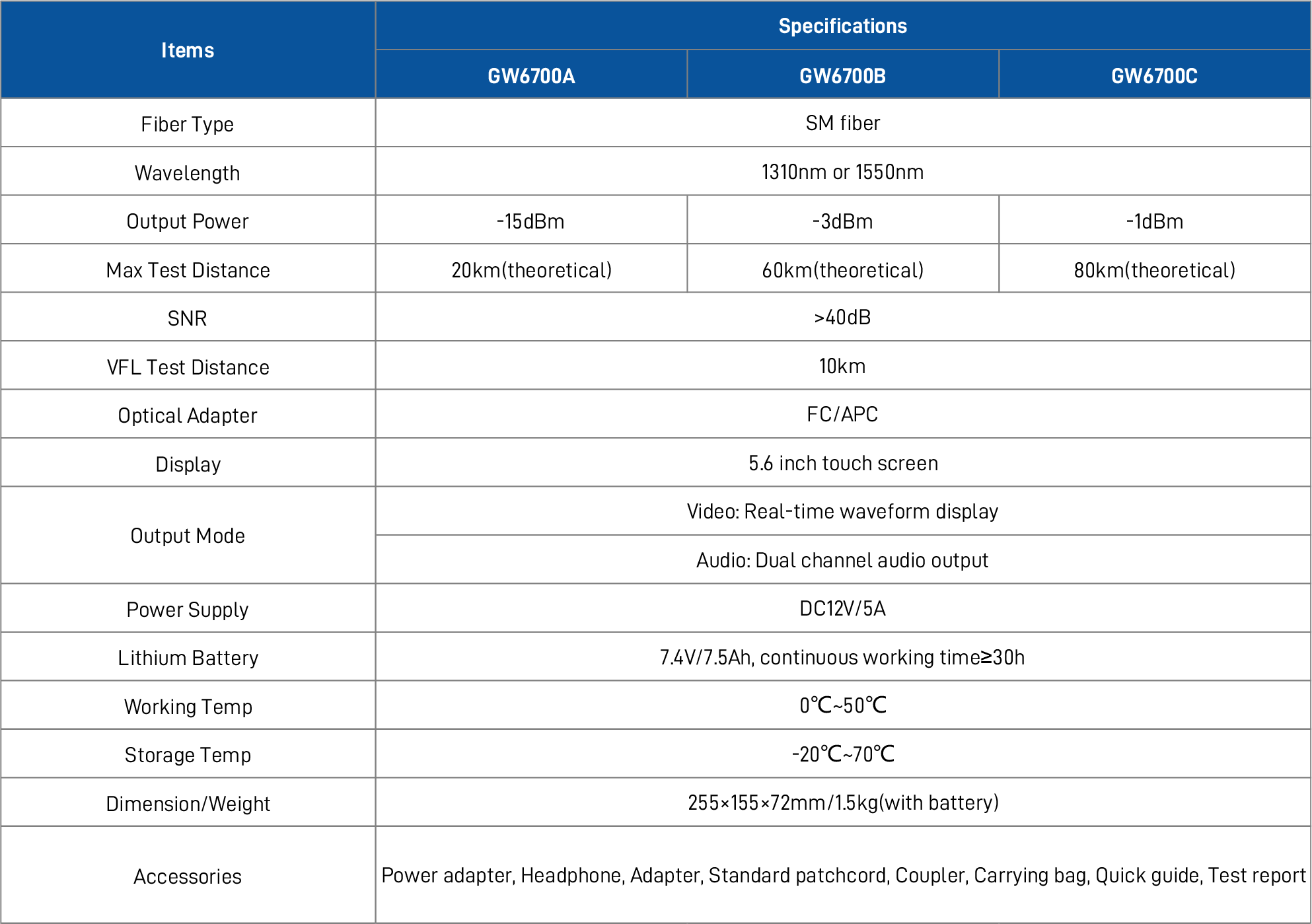

Parameter

GW6700_画板 1.png
