FHO5000 Series OTDR-Grandway OTDR Optical Time Domain Reflectometer, OTDR Fiber Tester-Grandway

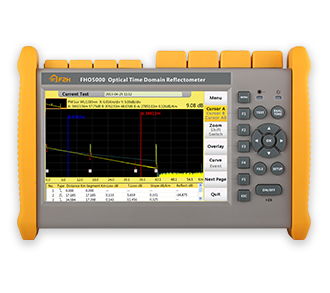

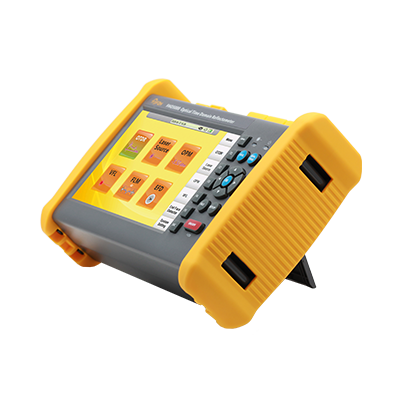

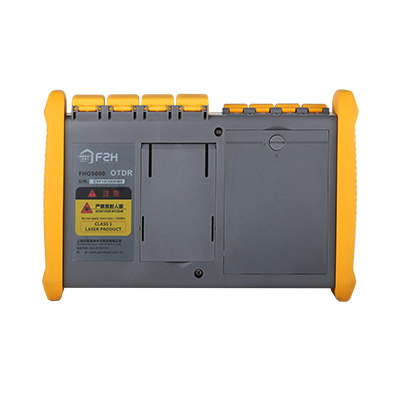

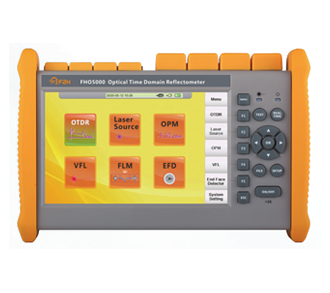

FHO5000 series OTDR

GRANDWAY

Functions

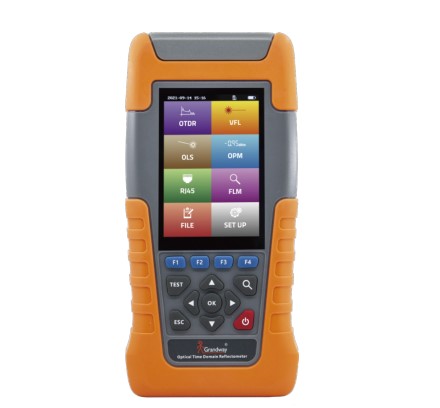

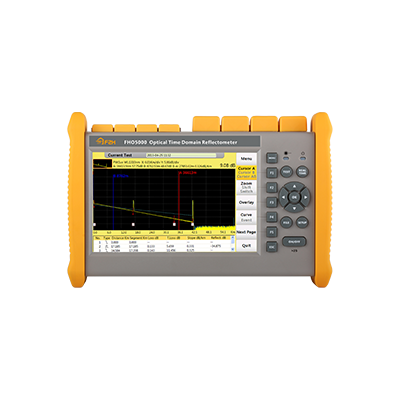

FHO5000 series OTDR is multi functional fiber testing tool.For different optical network test, multiple wavelength combinations and dynamic ranges are available. Humanized interface and simple operation, it will be a great helper in the fiber network testing.

7 inch

Screen size

24~45dB

Dynamic range

3.6~8m

Attenuation dead zone

0.8~1.2m

Event dead zone

80000

Trace storage

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features

Features
Models
Parameter
Packages
Make Video

Multi Functions Test of Grandway FHO5000 OTDR

One button test, real time test and fiber link map test

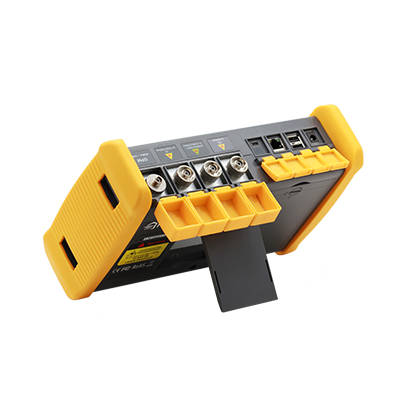

3×USB prot 6 hours test Built-in VFL/LS/OPM

16GBTest trace storage

200km Long distance test

26~45dB Multi dynamic range

Humanized structure interface design

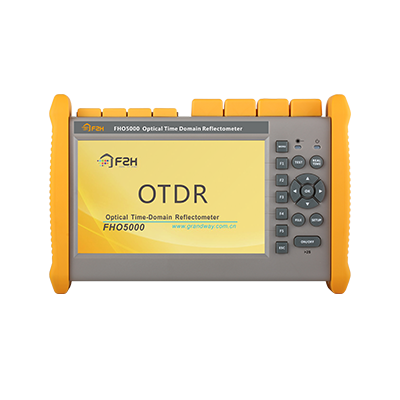

7-inchcolor touch

1mheight anti-fall

FLM test

Intelligent multi pulse width analysis, viewable dis-play of all events of optical fiber link

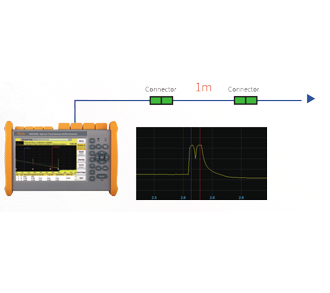

1m ultra short deadzone

Ultra short deadzone helps you identify short dis-

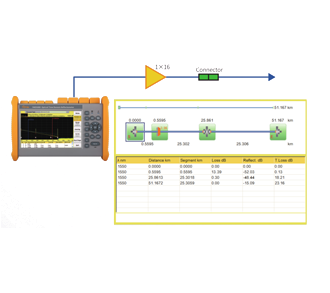

Through splitter test

Test two splitters fiber line1×4+1×16

Test one splitter fiber line

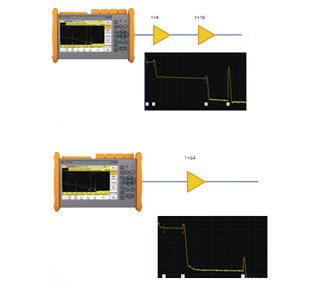

Through splitter test

Test two splitters fiber line1×4+1×16

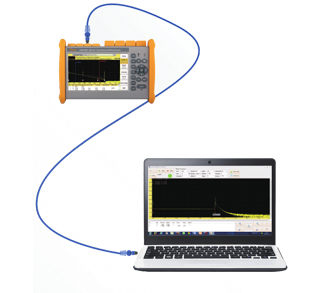

Remote control function

Remote control of FHO5000 through Ethernet port。

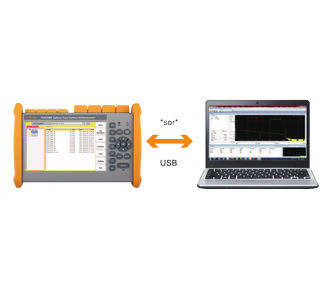

OTDR report export

Easy export, report making

Suitable for variousworking environ-

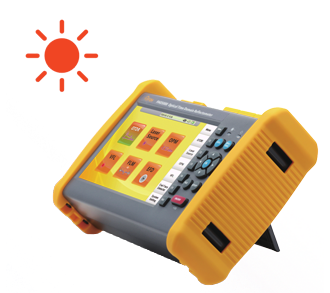

Backlight adjustment, the screencan be seen clearly under strong

Multi Functions Test of FHO5000 OTDR

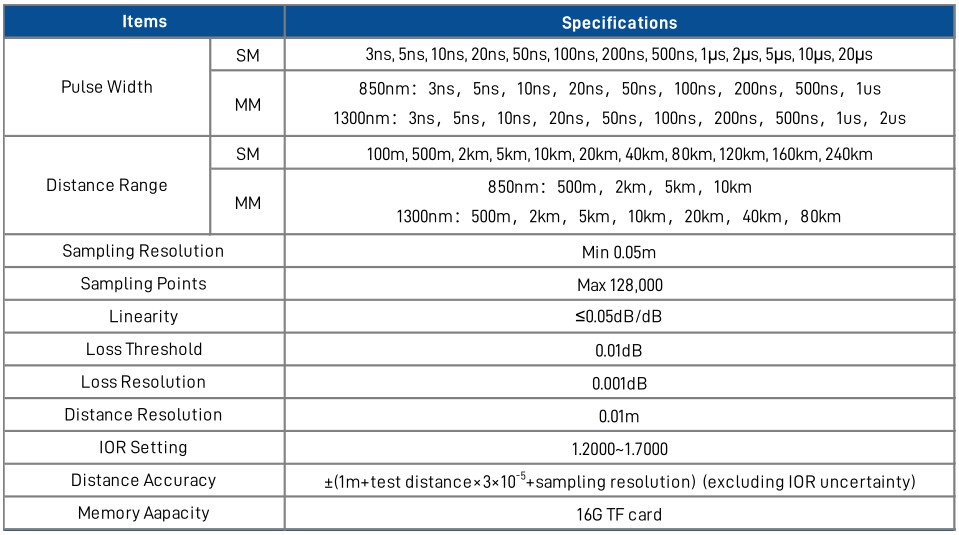

Item

Parameter

Pulse Width	SM	3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Pulse Width	MM	850nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us 1300nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us，2us
Test Range	SM	100m、500m、2km、5km、10km、20km、40km、80km、120km、160km、240km
Test Range	MM	850nm：500m，2km，5km，10km 1300nm：500m，2km，5km，10km，20km，40km，80km

Sampling Resolution	Min 0.05m
Linearity	≤0.05dB/dB
Sampling Point	128,000
Loss Threshold	0.01dB
Loss Resolution	0.001dB
Distance Resolution	0.01m

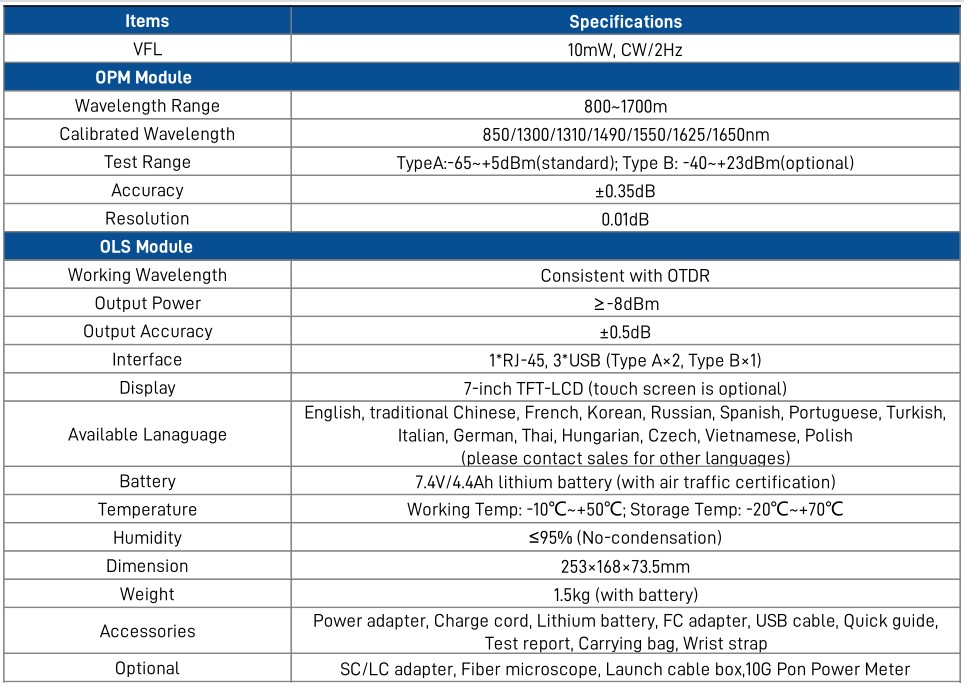

VFL	10mw, CW/2Hz
Distance Accuracy	±(1m+Test distance×3×10 -5 +Sampling resolution) （excluding IOR uncertainty）
Data Storage	≥ 80000 curves

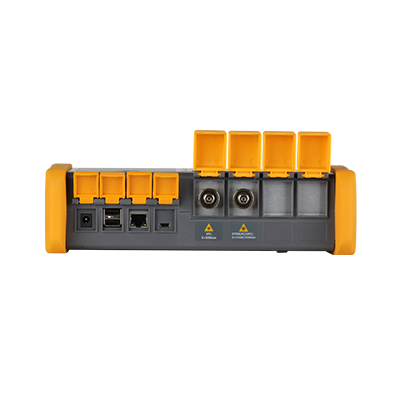

Interface	RJ-45，3*USB（Type A×2，Type B×1）
Display	7 inch TFT-LCD（Touch screen is optional）
Battery	7.4V/4.4Ah lithium battery（with air tracffic certification），6 hours continuous working
Temp	Work Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃
Humidity	≤ 95%（no-condensation）
Size/Weight	253×168×73.5mm / 1.5kg（with battery）
Accessories	Wrist strap、Charging adapter、 Battery、USB cable、Quick guide、Carrying bag

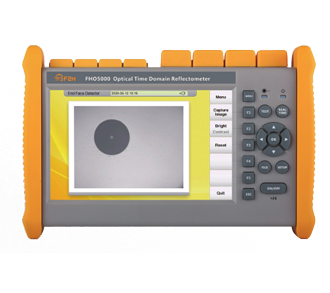

Optional	SC/LC adapter、OPM、LS、Touch screen、WiFi、Fiber microscope

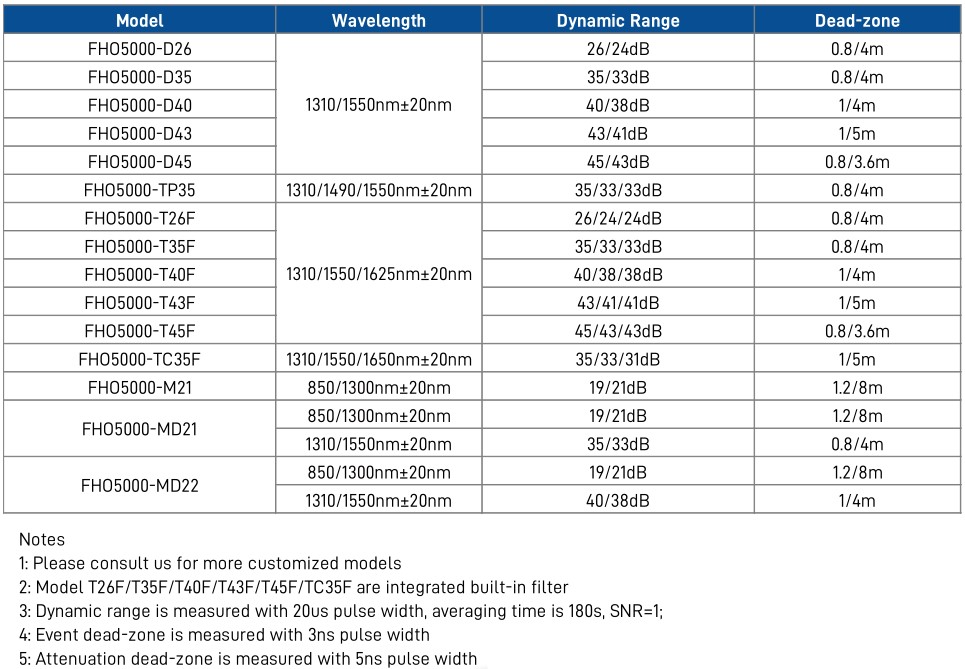

Parameters of FHO5000 OTDR

Model

Wavelength

Dynamic range

Deadzone

FHO5000-D26	1310/1550nm	26/24dB	0.8/4m
FHO5000-D35		35/33dB	0.8/4m
FHO5000-D40		40/38dB	1/4m
FHO5000-D43		43/41dB	1/5m
FHO5000-D45		45/43dB	0.8/3.6m
FHO5000-TP35	1310/1490/1550nm	35/33/33dB	0.8/4m
FHO5000-T40F	1310/1550/1625nm	40/38/38dB	1/4m
FHO5000-T43F		43/41/41dB	1/5m
FHO5000-T45F		45/43/43dB	0.8/3.6m
FHO5000-M21	850/1300nm	19/21dB	1.2/8m
FHO5000-MD21	850/1300nm	19/21dB	1.2/8m
FHO5000-MD21	1310/1550nm	35/33dB	0.8/4m
FHO5000-MD22	850/1300nm	19/21dB	1.2/8m
FHO5000-MD22	1310/1550nm	40/38dB	1/4m
