FHO1500 Last Mile Explorer
GRANDWAYFHO1500 is specifically for the weak light problem in the last mile, no matter how short the optical fiber distance is, the fault point can be accurately located. With the excellent 1m/4m deadzone performance, all kinds of continuous connectors, attenuation loss and other events that may appear in the last mile can be clearly distinguished.
3.5inch LCD
Screen size
20dB
Dynamic range
4m
Attenuation dead zone
1m
Event dead zone
1490/1577nm
10G PON
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE

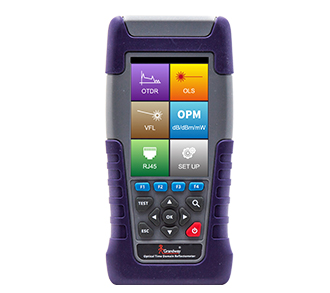

*3.5 inch color LCD, portable design and easy to carry.

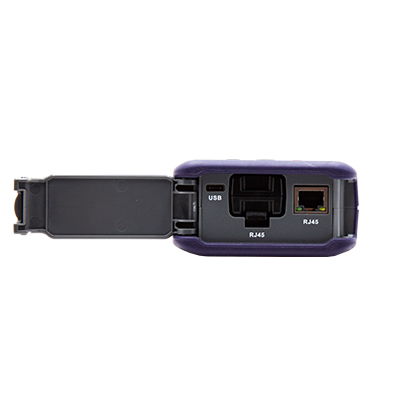

*Multi function integration, support 10mw VFL, stable laser source, optical power meter, RJ45 line sequence test and other functions.
*High precision, short deadzone OTDR can accurately test all kinds of continuous connectors and attenuation points in the line.
*The built-in dark optical fiber of OTDR can measure the attenuation at the near end of the line and the insertion loss of the first connector.
*Support live fiber test (1625nm or 1650nm is optioal).
*Bluetooth connection of mobile phone supports fast transmission of test files to mobile phone.
*Mobile phone remote control, control OTDR test and curve view analysis through the mobile phone.
Item | Parameter |
Wavelength | 1625nm or 1650nmm |
Dynamic Range | 20dB |
Event Dead zone | ≤1m |
Attenuation Dead zone | ≤4m |
IOR Setting | 1.468 |
Loss Resolution | 0.01dB |
Pulse Width | 5ns~20ns |
Sampling Points | 20000 |
Sampling Resolution | Min 0.05m |
Distance Accuracy | ±0.5m |
Loss Accuracy | 0.1dB |
Linearity | 0.1dB |
Reflectance Accuracy | ±2dB |

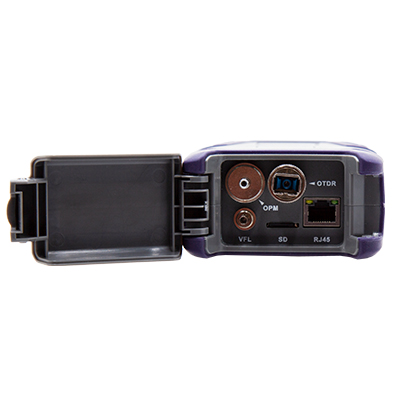

Optical Port | FC/UPC, SC/UPC |
Working Humidity | 0~85% (Non-Condensing) |
Working Temp | -10~50℃ |
