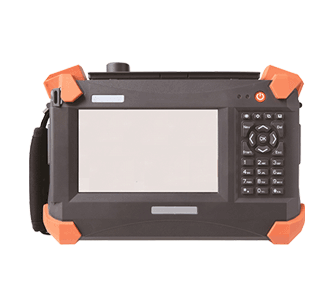

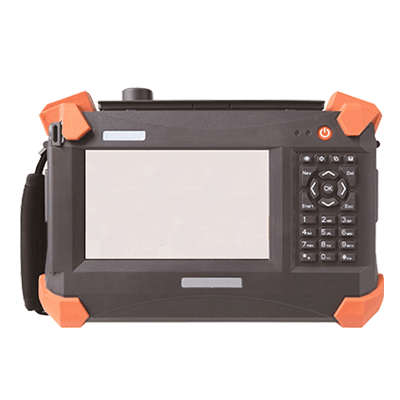

FCAA-100 Cable&Antenna Analyzer

FCAA-100 Cable&Antenna Analyzer
FCAA-100 Cable&Antenna Analyzer

Functions

FCAA-100 cable&antenna analyzer can test return loss and VSWR of load' frequency. Also can get return loss, VSWR of DTF(distance to fault) and cable loss. Users can be easy to know the oneection of cable&antenna system is reliable whether or not. FCAA-100 series with frequency range 25MHZ to 4GHZ and 60dB dynamic range can suitable for 2G/3G/4G/WiMAX system etc.

7 inch

Display

50Ohm

Input Impedance

25~4000MHz

Frequency range

1000kHz

Frequency resolution

0dBm(typ.)

Output power

FCAA-100 Cable&Antenna Analyzer

DATASHEET

FCAA-100 Cable&Antenna Analyzer

SOFTWARE

FCAA-100 Cable&Antenna Analyzer

DOCUMENTS

FCAA-100 Cable&Antenna Analyzer

CERTIFICATE

Features

FCAA-100 Cable&Antenna Analyzer

Frequency range: 25MHz to 4GHz; suitable for 2G/3G/4G/WiMAX system etc.

Dynamic range up to 60dB.

Intelligent limit/marker/curve calculations.

More than 8 hours long battery life.

7 inch color LCD touch screen.

Optimized batch file management: edit/delete/filter.

Excellent Man-Machine interface for easy operation.

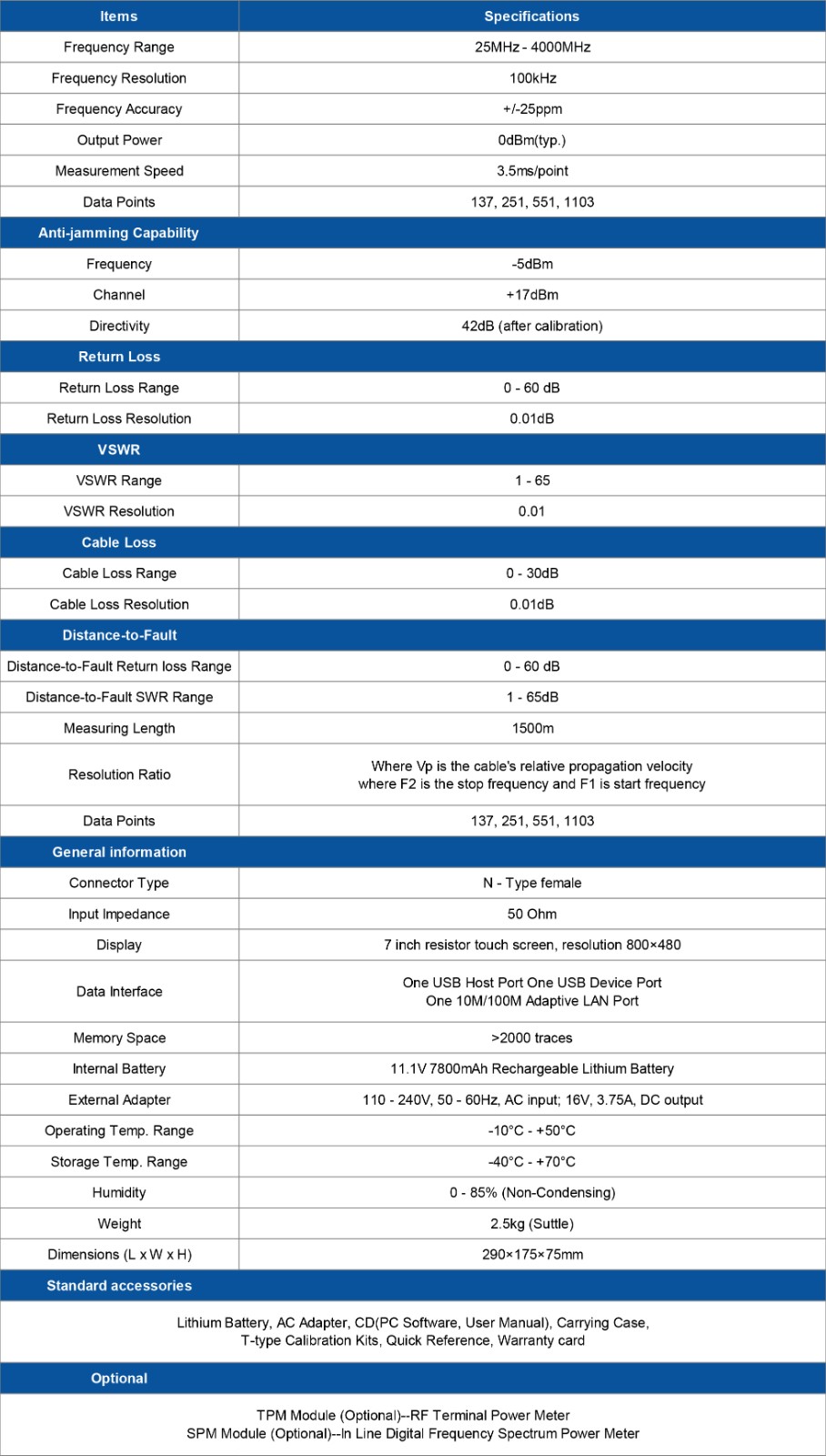

Parameters
