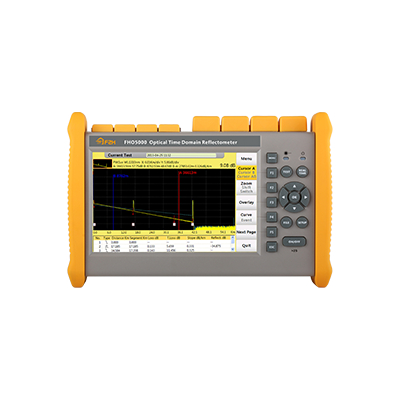

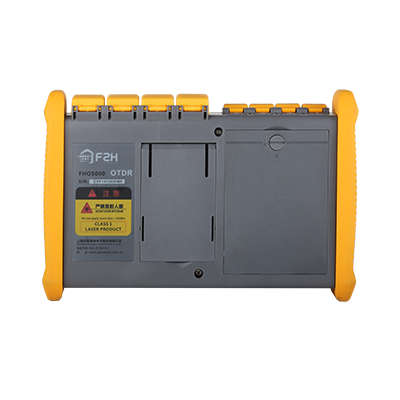

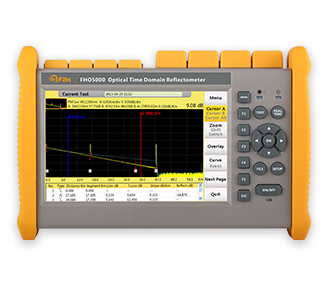

FHO5000 series OTDR

GRANDWAY

Functions

Fiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length


7inch TFT-LCD

Screen size(touch screen optional)

24~45dB

Dynamic range

3.6~8m

Attenuation dead zone

0.8~1.2

Event dead zone

80000

Trace storage

80000

Trace storage


Product Information


Procedures


Software/Firmware


Certifications

Multi Functions Test

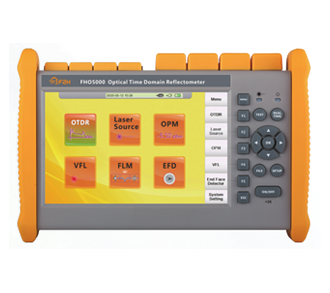

One button test,real time test and fiber link map test

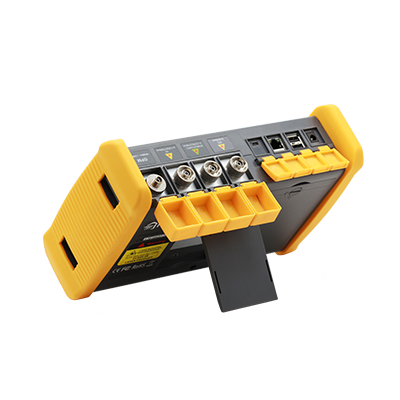

3×USB prot 6 hours test Built-in VFL/LS/OPM

16GBTest trace storage

200km Long distance test

26~45dB Multi dynamic range

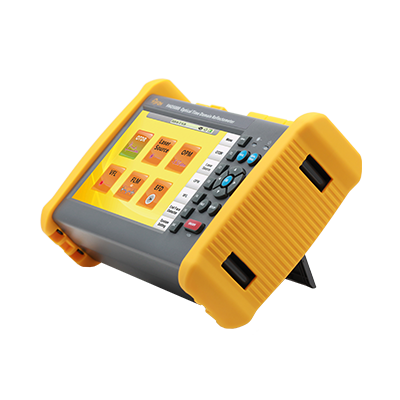

Humanized structure interface design

7-inchcolor touch

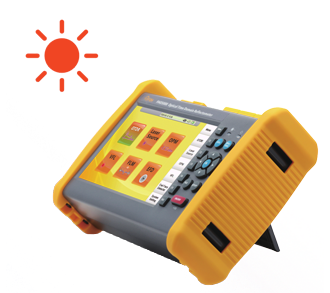

1mheight anti-fall

FLM test

Intelligent multi pulse width analysis, viewable dis-play of all events of optical fiber link

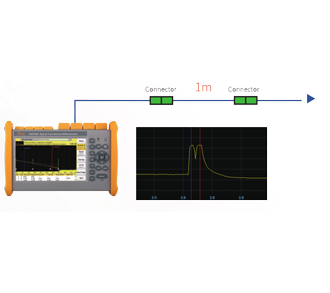

1m ultra short deadzone

Ultra short deadzone helps you identify short dis-

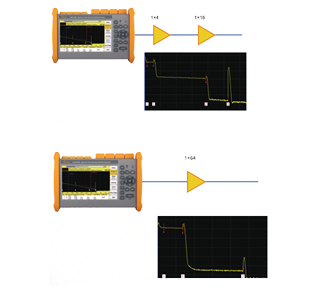

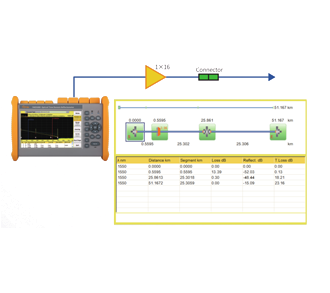

Through splitter test

Test two splitters fiber line1×4+1×16

Test one splitter fiber line

Through splitter test

Test two splitters fiber line1×4+1×16

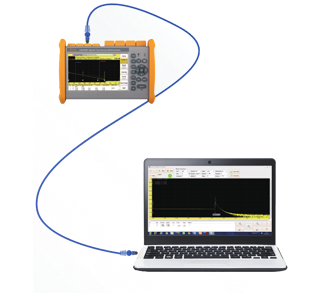

Remote control function

Remote control of FHO5000 through Ethernet port。

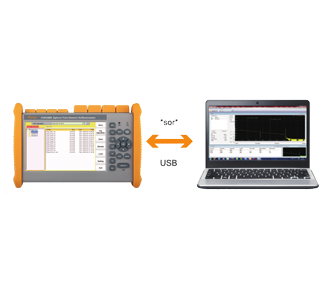

OTDR report export

Easy export, report making

Suitable for variousworking environ-

Backlight adjustment, the screencan be seen clearly under strong

Multi Functions Test

ItemParameter
Pulse WidthSM3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
MM

850nm:3ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us

1300nm:3ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us,2us

Test RangeSM100m、500m、2km、5km、10km、20km、40km、80km、120km、160km、240km
MM

850nm:500m,2km,5km,10km

1300nm:500m,2km,5km,10km,20km,40km,80km

Sampling resolutionMin 0.05m
Linearity128,000
Sampling point≤0.05dB/dB
Loss threshold0.01dB
Loss resolution0.001dB
Distance resolution0.01m
VFL±(1m+Test distance×3×10 -5 +Sampling resolution) (excluding IOR uncertainty)
Distance accuracy≥ 160000 curves
Data storage10mW,CW/2Hz

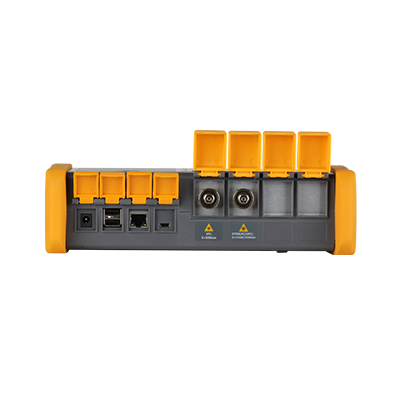

InterfaceRJ-45,3*USB(Type A×2,Type B×1)
Display7 inch TFT-LCD(Touch screen is optional)
Battery7.4V/4.4Ah lithium battery(with air tracffic certification),6 hours continuous working
TempWork Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃
Humidity≤ 95%(no-condensation)
Size/Weight253×168×73.5mm / 1.5kg(with battery)
AccessoriesWrist strap、Charging adapter、 Battery、USB cable、Quick guide、Carrying bag

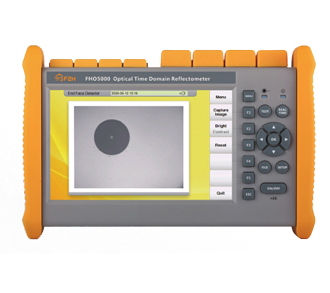

OptionalSC/LC adapter、OPM、LS、Touch screen、WiFi、Fiber microscope

Parameter

ModelWavelengthDynamic rangeDeadzone
FHO5000-D261310/1550nm26/24dB0.8/4m
FHO5000-D3535/33dB0.8/4m
FHO5000-D4040/38dB1/4m
FHO5000-D4343/41dB1/5m
FHO5000-D4545/43dB0.8/3.6m
FHO5000-TP351310/1490/1550nm35/33/33dB0.8/4m
FHO5000-T40F1310/1550/1625nm40/38/38dB1/4m
FHO5000-T43F43/41/41dB1/5m
FHO5000-T45F45/43/43dB0.8/3.6m
FHO5000-M21850/1300nm19/21dB1.2/8m
FHO5000-MD21850/1300nm19/21dB1.2/8m
1310/1550nm35/33dB0.8/4m
FHO5000-MD22850/1300nm19/21dB1.2/8m
1310/1550nm40/38dB1/4m

Packing list

OTDR main unitlithium batteryCarrying bag
Wrist strapCharging adapterCharging cord
USB CableCalibration ReportQuick Guide
