Functions

Grandway GS-40 fusion splicer adopts high speed image processing technology and 4 motors precision positioning technology, which enables splicing effect is efficient and accurate.

4 motors

Cladding alignment

9s

Fast splicing time

25s

Adjustable heating time

200 cycles

200 splicing and heating

4 in 1

multi function fiber holder

GS40 Fusion Splicer

DATASHEET

GS40 Fusion Splicer

SOFTWARE

GS40 Fusion Splicer

MANUAL

GS40 Fusion Splicer

CERTIFICATE

Features

GS40 Fusion Splicer

Four motors special precision-positioning technology

Fast splice time: 9 seconds

Auto splice, auto Arc optimization, auto heating

High precision 4-in-1 holder(250μm/900μm/3mm patchcord / FTTx indoor fiber etc), SOC holder

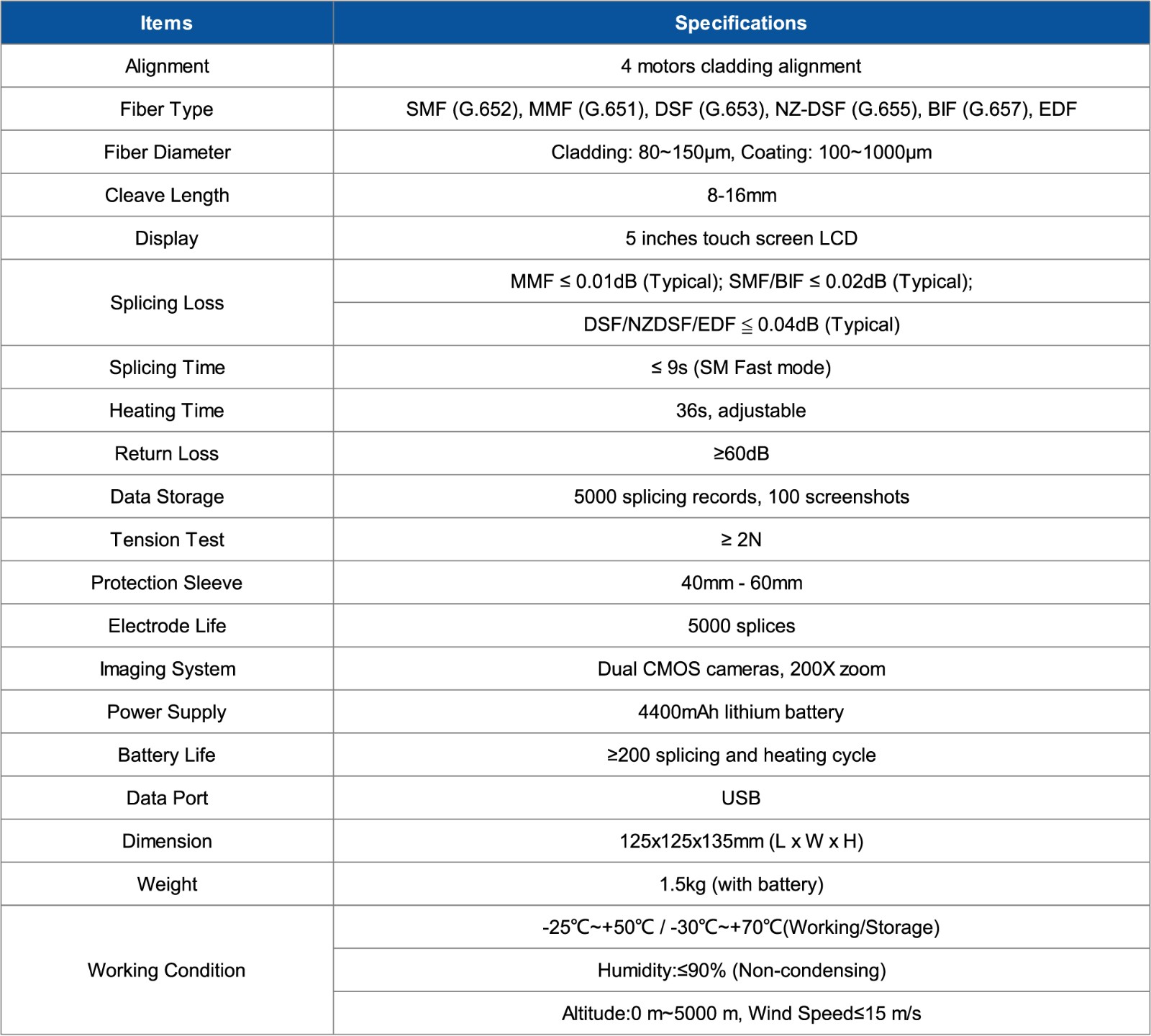

Parameter

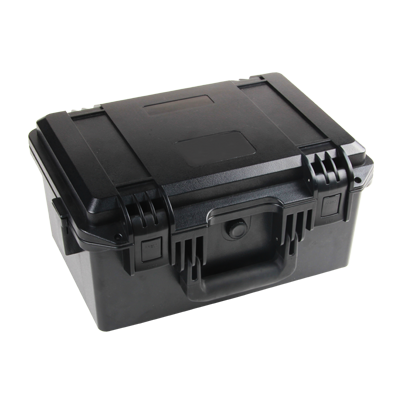

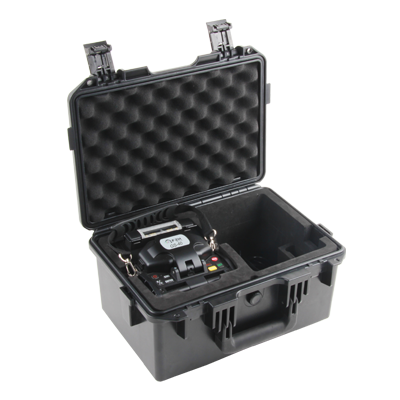

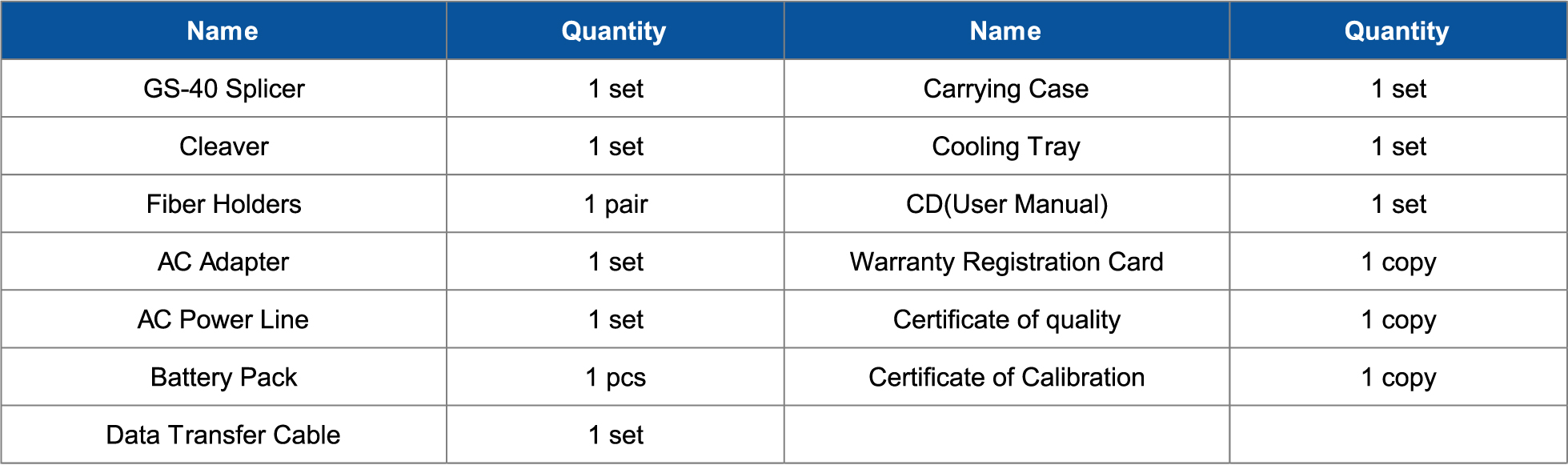

Packages
