FIM-12 Fiber Microscope

FIM-12 Fiber Microscope
FIM-12 Fiber Microscope

Functions

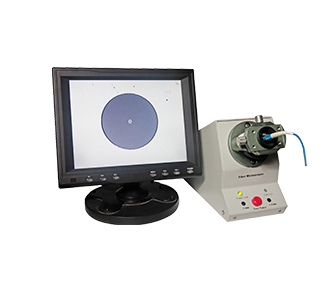

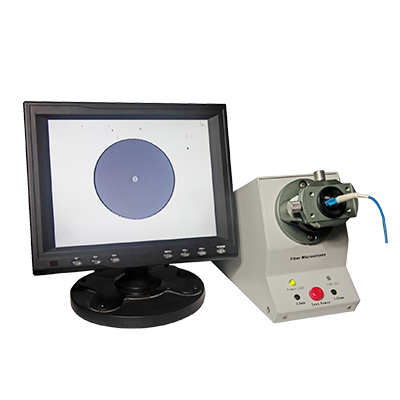

FIM-12 Bench-top Fiber Microscope specializes in the fiber end face inspection with diameter of 1.25mm and 2.5mm for patch cord. Finished, semi-finished, PC and APC connectors can be tested. It has two types: 200X and 400X magnification, with resolution of 0.75um and 0.5um respectively.

200X/400X

Magnification

400x350um

Field of vision

8/10.4inch

Display





FIM-12 Fiber Microscope

DATASHEET

FIM-12 Fiber Microscope

SOFTWARE

FIM-12 Fiber Microscope

MANUAL

FIM-12 Fiber Microscope

CERTIFICATE

Features

FIM-12 Fiber Microscope

HD 8/10.4 inch LED display for distinct and clear image shown

Smooth focus control, simple operation, stable testing results

Contamination and scratches can be clearly checked and resolution reaches 0.5um

X/Y axis adjustment for both horizontal and vertical control, broaden the view of field and stabilize image always in center

Average light spot in display gets feature of same resolution between fiber core and ceramic end face with little testing errors

Optional USB digital function to connect PC and software for end face data analysis based on IEC standard criteria

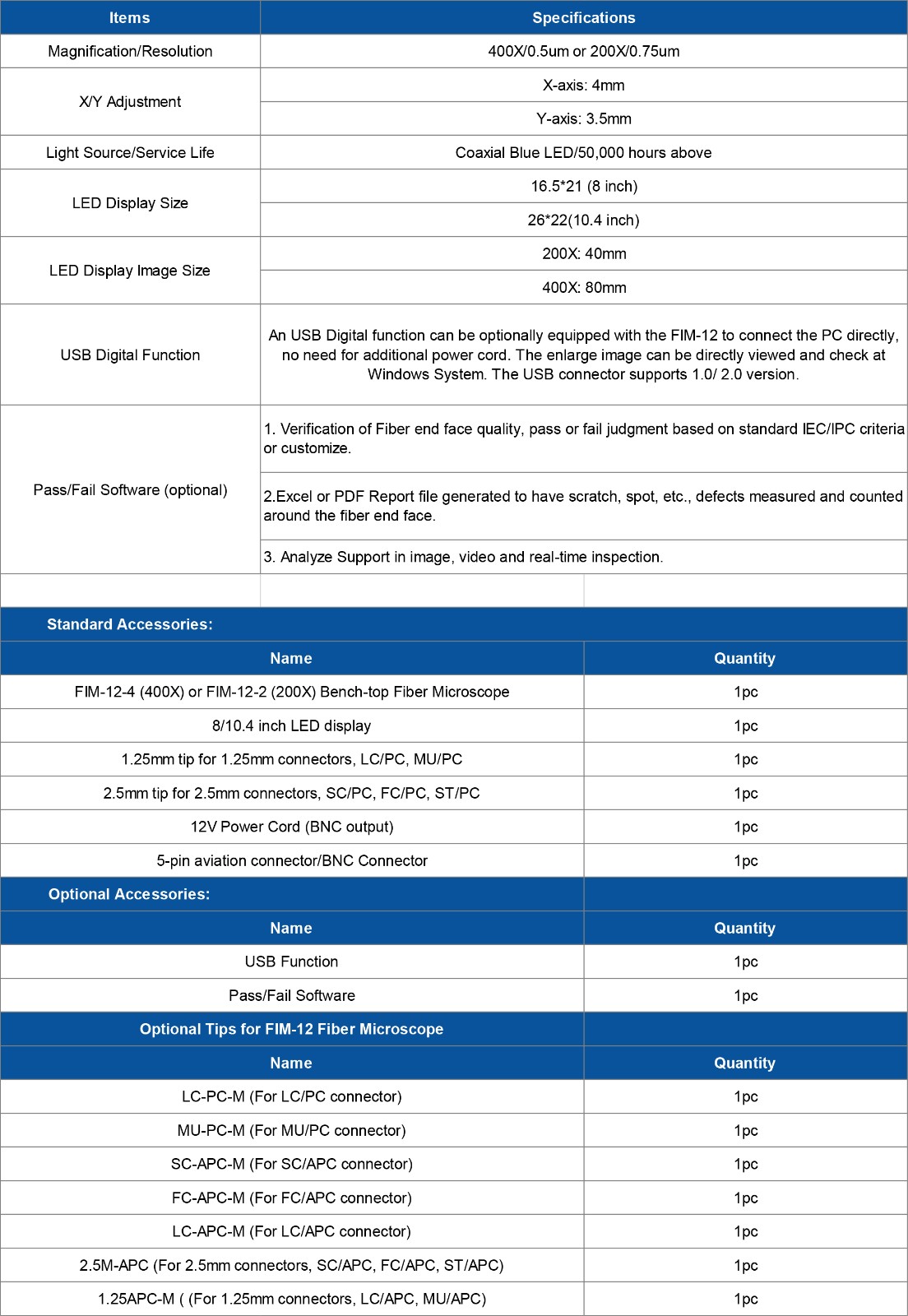

Parameter
